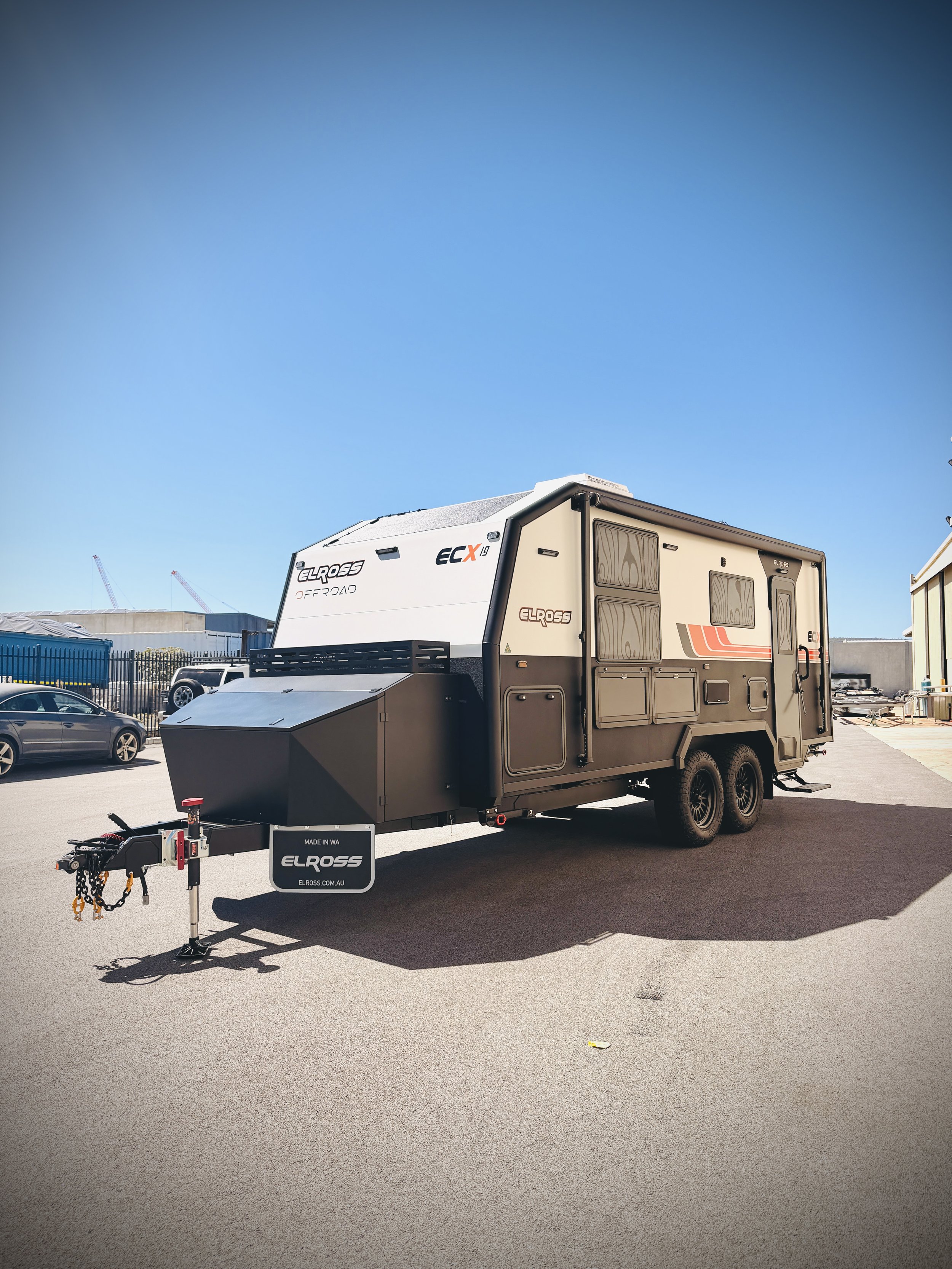

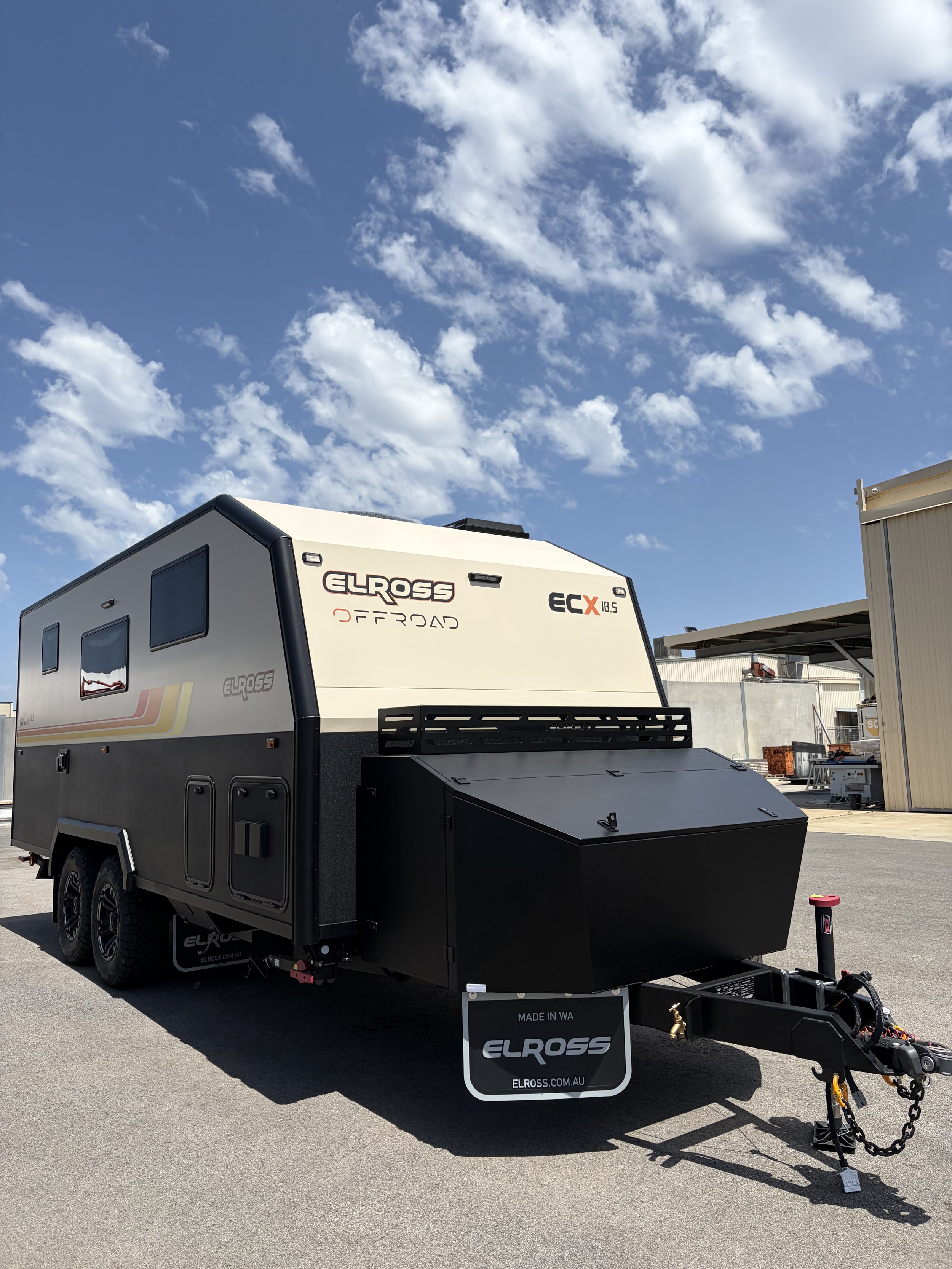

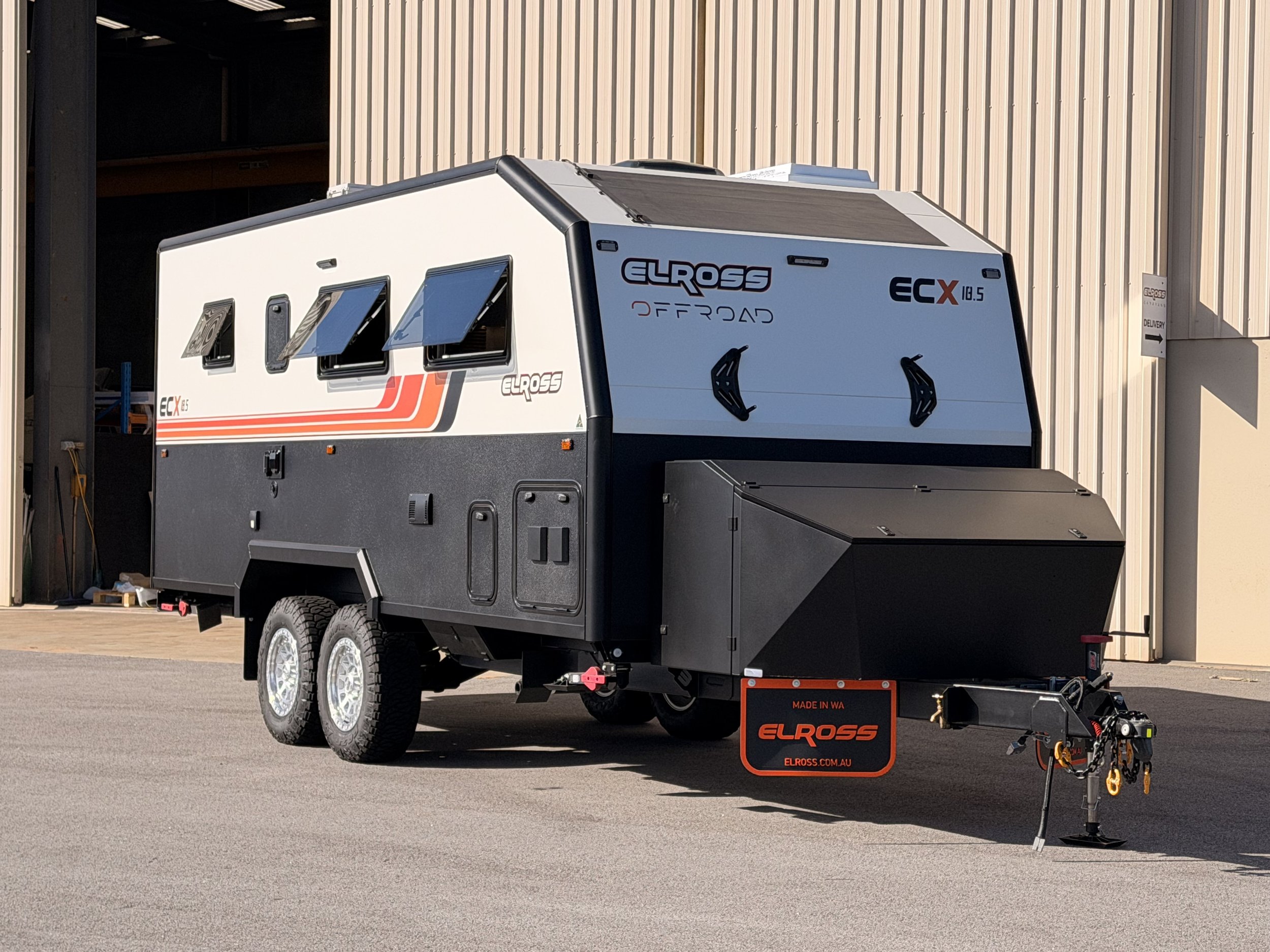

The ECX Off-Road is a purpose crafted, Off-road Caravan constructed to withstand some of Australia's toughest terrain. With a high level of detail and bespoke craftsmanship, the ECX is ready to explore.
2025 ECX OFF-ROAD OVERVIEW
PROUDLY WEST AUSTRALIAN MADE
Tailored to conquer Australia’s toughest terrains and conditions, Your in house fabricated Elross off road Chassis is built with Ausmills Duragal steels. Coupled with the knowledge and expertise of Cruisemaster’s robust XTF Air-bag suspension.
The key design element of the Elross Chassis is the use of full box tube support rails that intersect the X axis main bearers that run the entire length of the van. This enables for a clean and strong chassis that offers both torsional rigidity and flexibility, rolled into the one platform. Couple this with a lengthy draw bar design philosophy and carefully calculated axle position helps Elross to create one of the safest, strongest and best towing chassis on the market.
STRONG CHASSIS & SUSPENSION

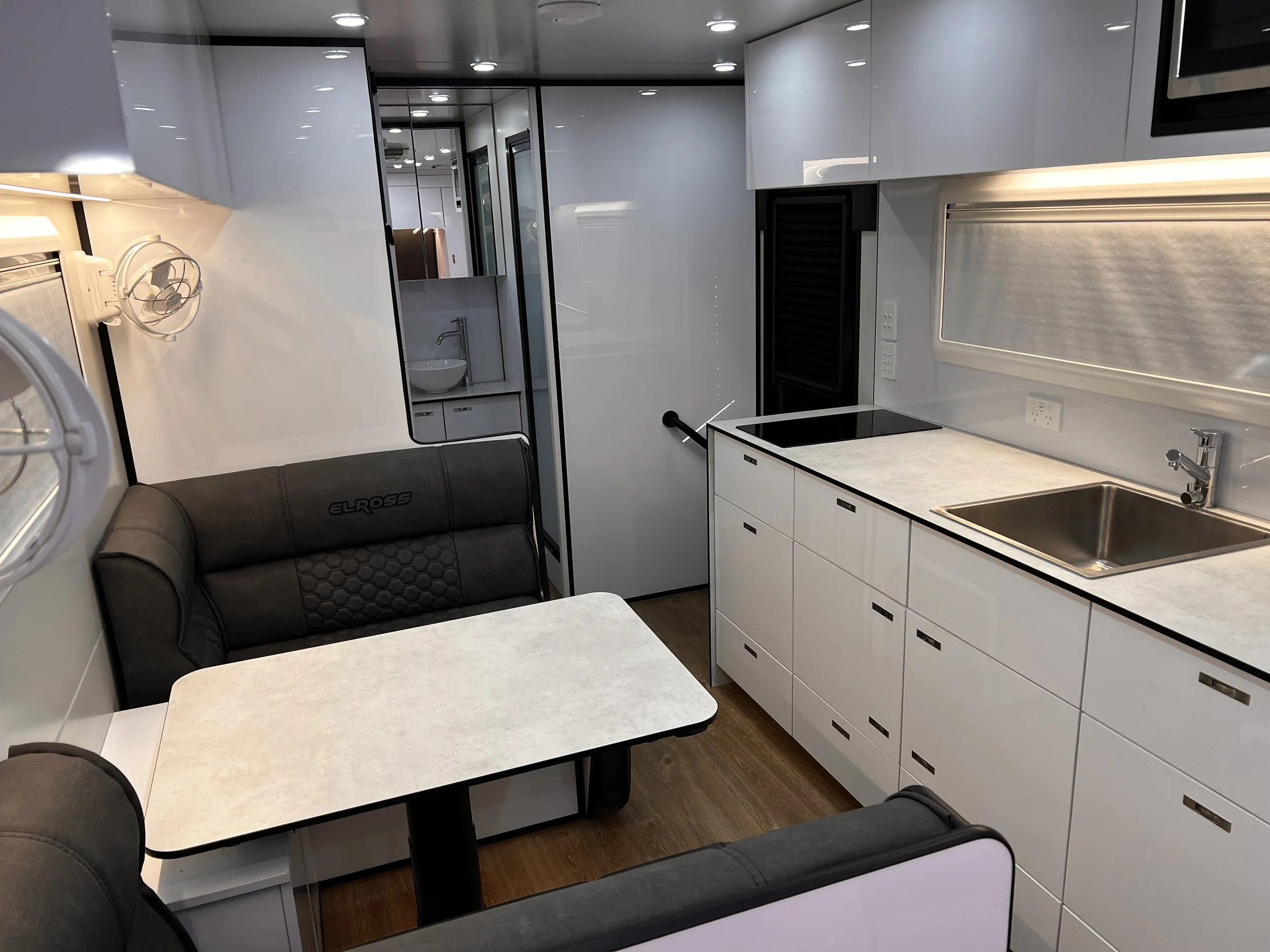

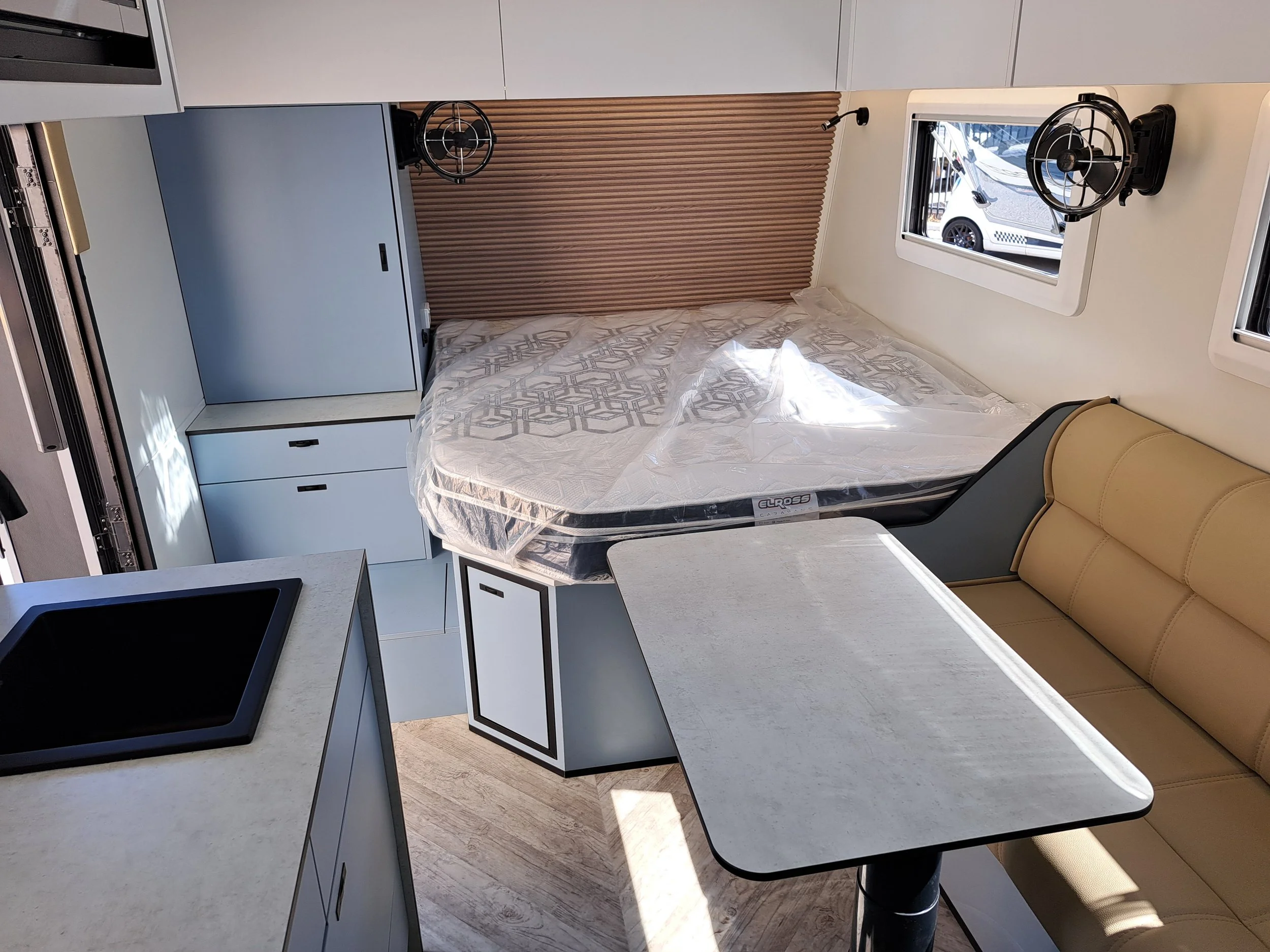

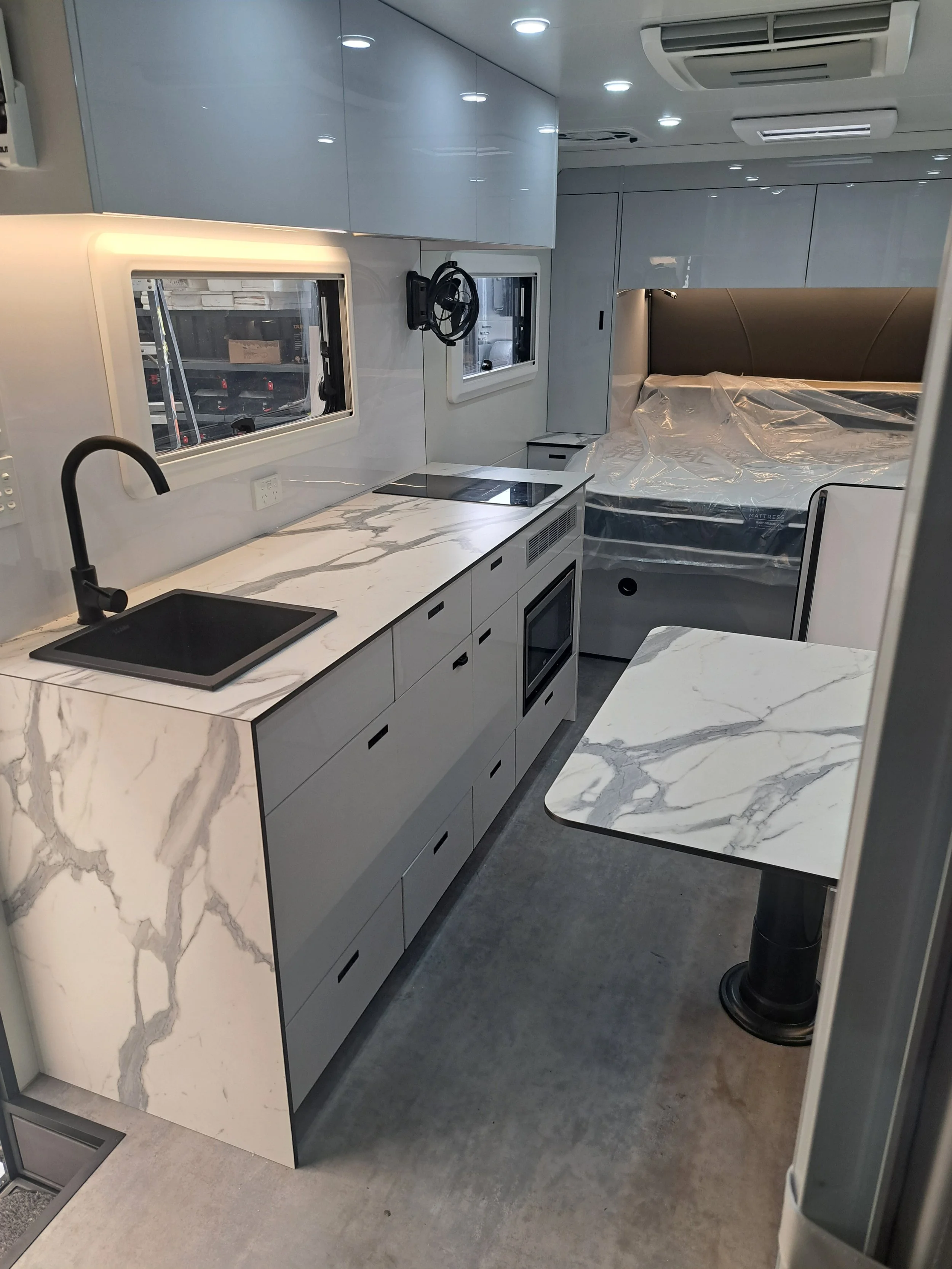

LUXURY INTERIORS
Choose from our extensive range of interior styling options from Modern industrial, through to classic colour palettes, Elross ensures we give our customers the ultimate flexibility in the design of your caravan interior. With Italian handles, luxury tapware, locally made WA mattresses, the ECX is developed for the ultimate in comfort living. Modern Furniture construction techniques ensure a light weight and sturdy design ready for traversing the wild. Coupled with a host of premium at home style systems, the latest technology is also at your disposal.
A RUGGED EXTERIOR MADE FOR ADVENTURE
Find the road less travelled with confidence. Elross’s Body building technique is unique in the market place, utilizing our own EPS panel core and Colourbond steel for our roof and wall construction. 50mm in thickness our panels provide superior strength and thermal properties for our harsh WA climate.
External moulds serve not only an aesthetic purpose but provide structural rigidity to our advanced body technology. Our body building’s primary function is to ensure the chassis, floor and walls all work together as a load bearing structure, not our furniture.
OFFGRID SOLAR AND WATER

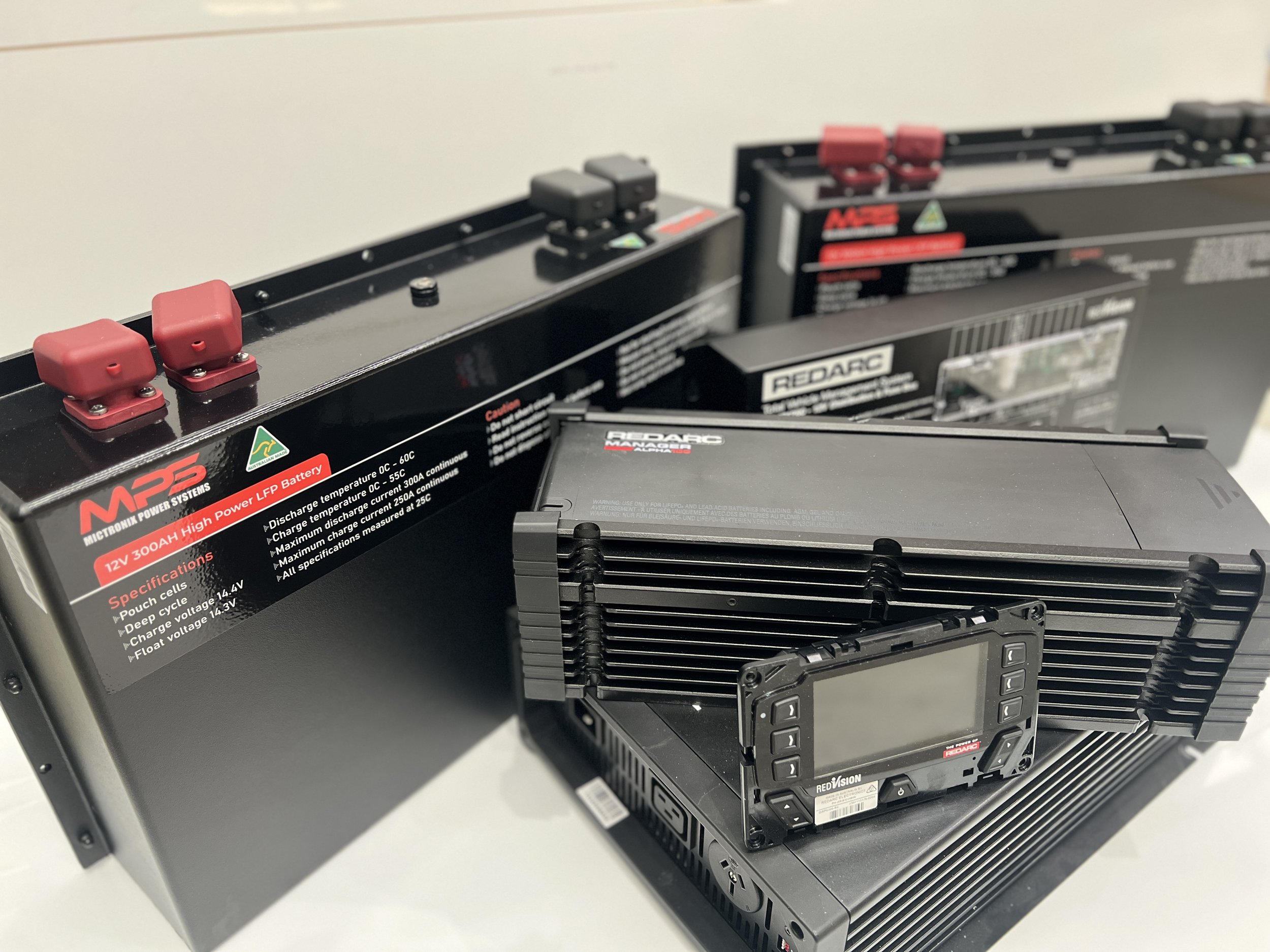

ECX STD INCLUSIONS :
675W Mono Solar Array
Red Arc 50Amp BMS

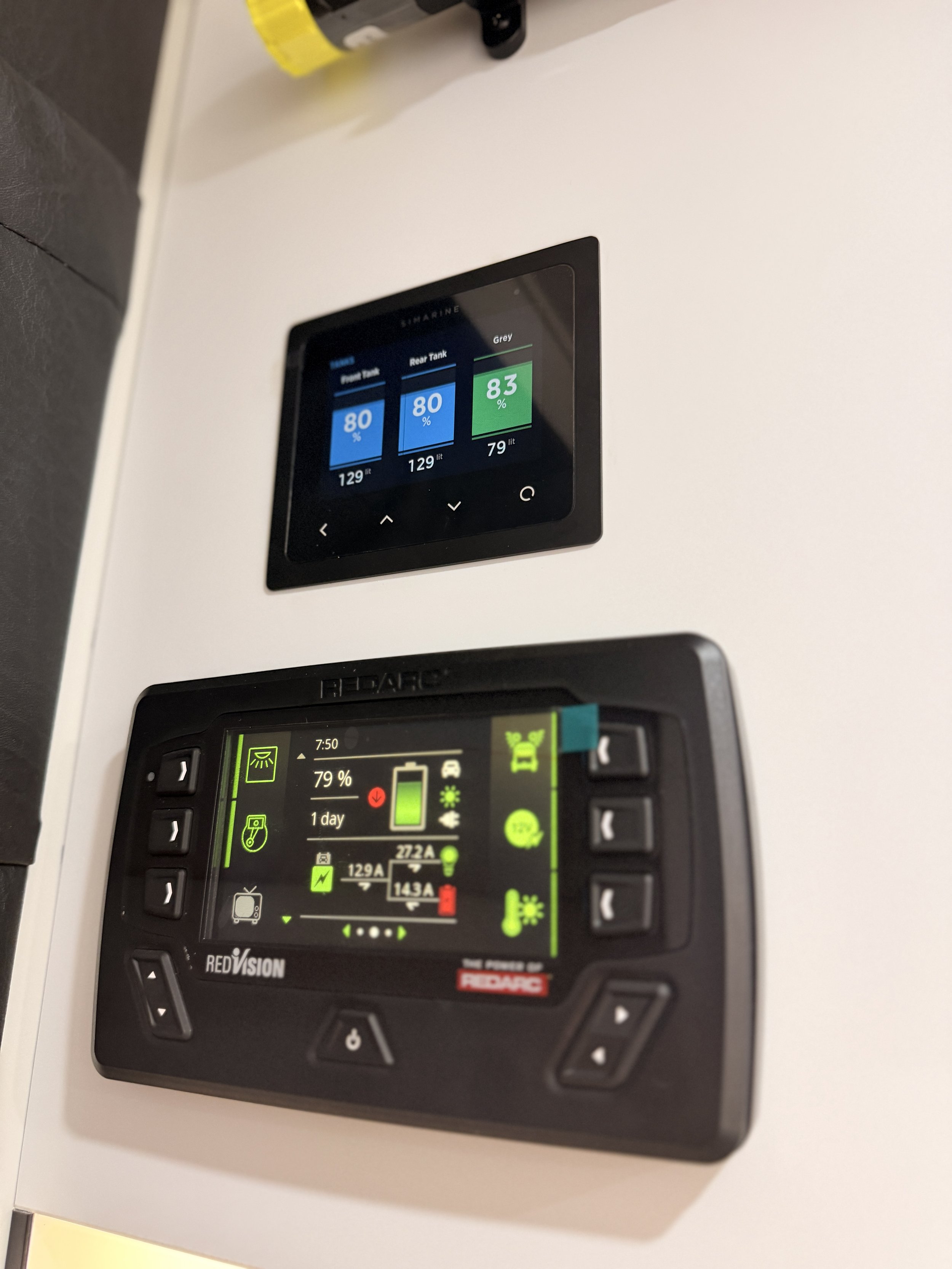

Redvision screen
Red Arc RS3 3000w ATS Inverter
400A/H MPS lithium Power Bank
Anderson for Fold out solar
2 x 120L Water tanks fresh
1 x 95L grey water
Inline B.E.S.T water filter
Elross Water filling system
LONG RANGE CAPABILITIES
*subjected to terms and conditions.
-
![Ladder package]()
LADDER PACKAGE
Optional ladder to access roof easily to clean panels or look at the stars!
-
![]()
OUTDOOR KITCHENS
Add our own in house built Slide out kitchen with induction and optional Sizzler max bbq
-
![Carafan]()
CARAFAN CP700
Made in WA the CP700 is built to match Elross’s tough vehicles providing dust mitigation.
-
![Water tanks]()
320L WATER HOLDING*
Upgrade your Rota moulded water tanks for added capacity. *size depends on model
-
![Bug light]()
BUG LIGHT PACKAGE
Upgrade to a bug light package gvingyou 360’ of lighting around your van
-
![toolbox]()
UPGRADE TO A DELUXE TOOLBOX
The Deluxe toolbox is fabricated in house and offers over 1427L of storage. 3 times the std toolbox capacity
-
![water filtration]()
UV WATER FILTRATION & STERILIZATION
Option your ECX Hybrid van with self contained Water filtration and UV LED water sterilization for complete onboard treatment
-
![Induction cooktop]()
INDUCTION COOKING
Upgrade your cooktop to induction to complete the pairing of the combi D6 for a completely Gas free environment
FLOORPLANS & SPECIFICATIONS
-
![]()
14FT
External Dimensions (mm) Length: 6665 Width: 2300 Height: 3100
Load and axle: 2.6T (Coil/Air) | Approx min. Tare 1850kg | Ball weight: Approx 160kg
Please contact us for further layouts.
-
![]()
15FT
External Dimensions (mm) Length: 6965 Width: 2300 Height: 3100
Load and axle: 2.8T Coil / 2.6T Air | Approx min. Tare 1980kg | Ball weight: Approx 170kg
Please contact us for further layouts.
-
![]()
16.5FT
External Dimensions (mm) Length: 7445 Width: 2300 Height: 3100
Load and axle: 2.8T Coil / 2.6T Air | Approx min. Tare 2120kg (single axle) | Ball weight: Approx 180kg
Please contact us for further layouts.
-
![]()
17FT
External Dimensions (mm) Length: 7595 Width: 2300 Height: 3100
Load and axle: 3.3T Coil / 3.4T Air | Approx min. Tare 2380kg | Ball weight: Approx 166kg
Please contact us for further layouts.
-
![]()
18.5FT
External Dimensions (mm) Length: 8095 Width: 2300 Height: 3100
Load and axle: 3.7T Coil / 3.4T Air | Approx min. Tare 2580kg | Ball weight: Approx 180kg
Please contact us for further layouts.
-
![]()
19FT
External Dimensions (mm) Length: 8245 Width: 2300 Height: 3100
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2660kg | Ball weight: Approx 185kg
Please contact us for further layouts.
-
![]()
20FT
External Dimensions (mm) Length: 8495 Width: 2300 Height: 3100
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2720kg | Ball weight: Approx 190kg
Please contact us for further layouts.
-
![]()
21FT
External Dimensions (mm) Length: 8795 Width: 2300 Height: 3100
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2780kg | Ball weight: Approx 195kg
Please contact us for further layouts.
-
![]()
22FT
External Dimensions (mm) Length: 9115 Width: 2300 Height: 3100
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2850kg | Ball weight: Approx 205kg
Please contact us for further layouts.
| MODEL | AXLE | DRIVEAWAY FROM |
|---|---|---|
| ECX-14 | Single | $120 990.00 ($108 990 no shower) |
| ECX-15 | Single | $127 990.00 |
| ECX-16.5RE | Single | $130 990.00 |
| ECX-16.5 | Dual | $139 990.00 |
| ECX-17 | Dual | $145 990.00 |
| ECX-18.5 | Dual | $155 990.00 |
| ECX-19 | Dual | $160 990.00 |
| ECX-20 | Dual | $168 990.00 |
| ECX-21 | Dual | $174 990.00 |
| ECX-22 | Dual | $183 990.00 |
We make every effort to keep information as accurate as possible. Due to our continuous product development and improvement all information and items are subject to change without notice.
Get your copy of our ECX & ECXR Offroad Brochure!
Download the OFFROAD specification sheet
Proudly designed, manufactured and owned right here in Western Australia since 1984.
Elross Caravans continue to lead the industry, bringing high quality off-road products to the WA community.
