The Family Range by Elross has been specifically designed to meet the needs of rugged Off-Road family living, along with a lightweight and compact design. Built for the next generation of caravanning, the ECXF vehicles feature extensive Off-Road technologies and electronic options to ensure everyone enjoys the journeys less travelled.
2024 ELROSS FAMILY RANGE OVERVIEW
PROUDLY WEST AUSTRALIAN MADE
STRONG CHASSIS & SUSPENSION
Tailored to conquer Australia’s toughest terrains and conditions, Your in house fabricated Elross off road Chassis is built with Ausmills Duragal steels. Coupled with the knowledge and expertise of Cruisemaster suspension provide a formidable combination. ECXF models are available with XT coil and an air-bag upgrade kit is available, please speak to one of our sales team to discuss your options.
The key design element of the Elross Chassis is the use of full box tube support rails that intersect the X axis main bearers that run the entire length of the van. This enables for a clean and strong chassis that offers both torsional rigidity and flexibility, rolled into the one platform. Couple this with a lengthy draw bar design philosophy and carefully calculated axle position helps Elross to create one of the safest, strongest and best towing chassis on the market.

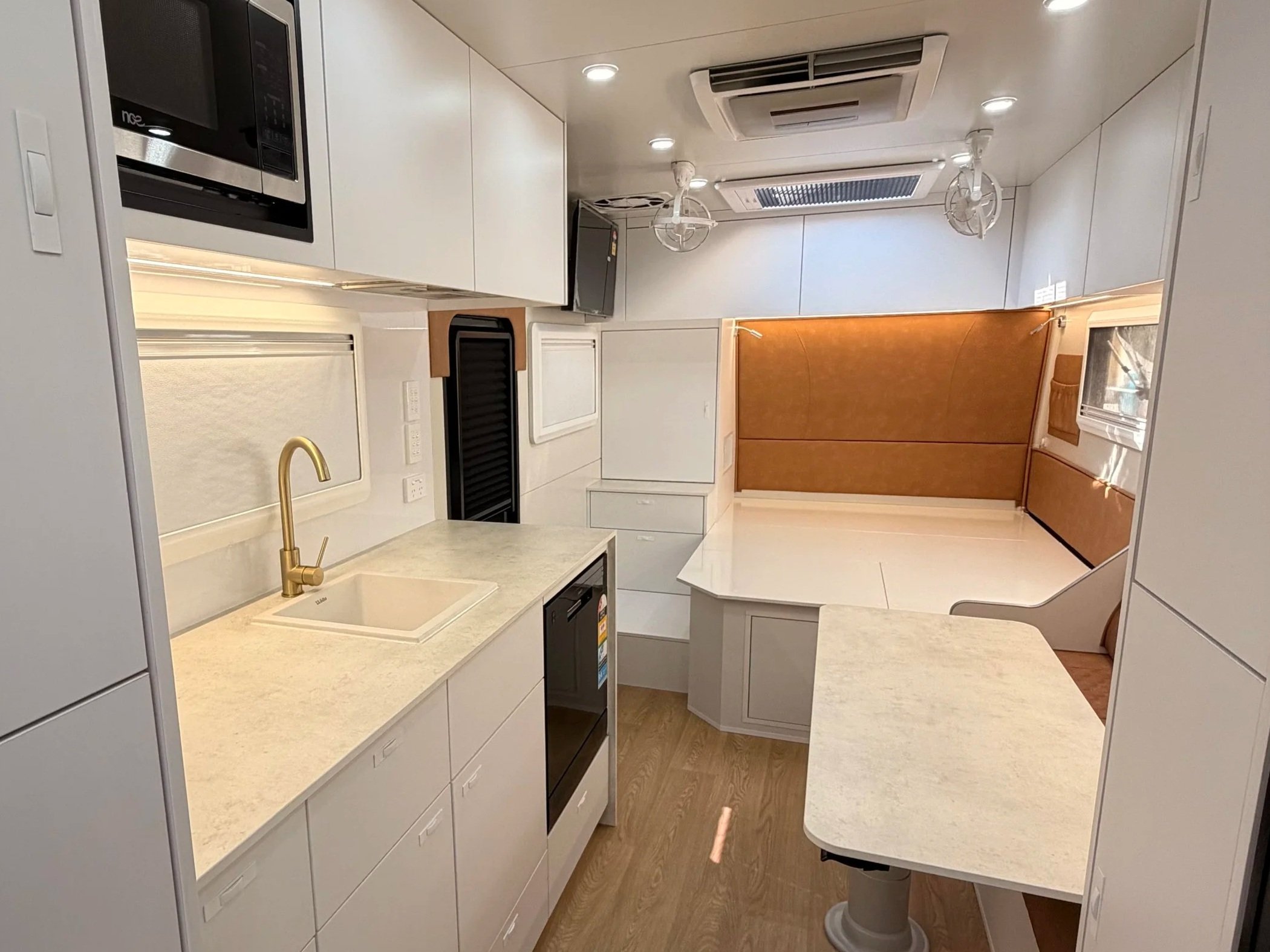

ROOM FOR THE WHOLE FAMILY

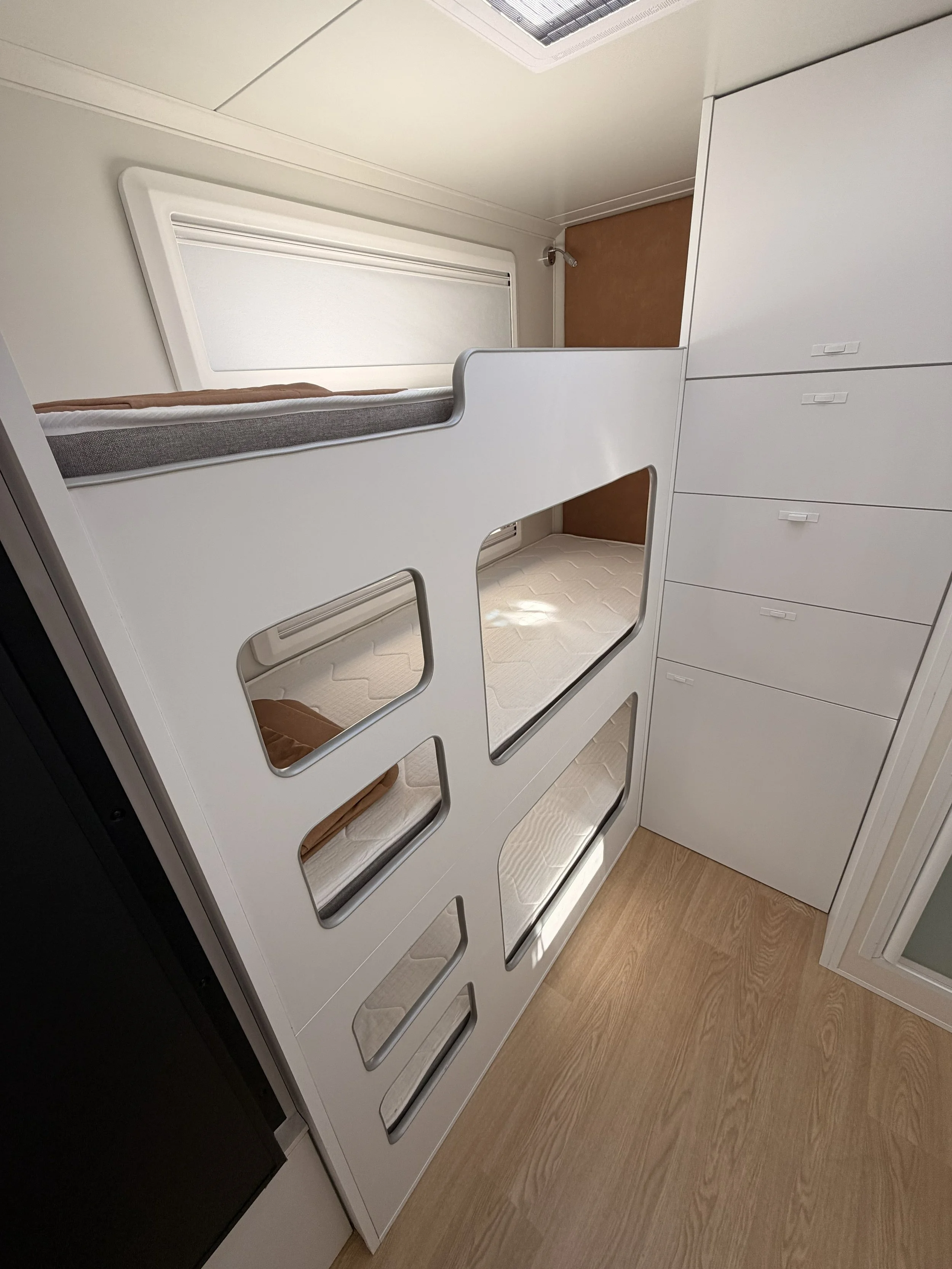

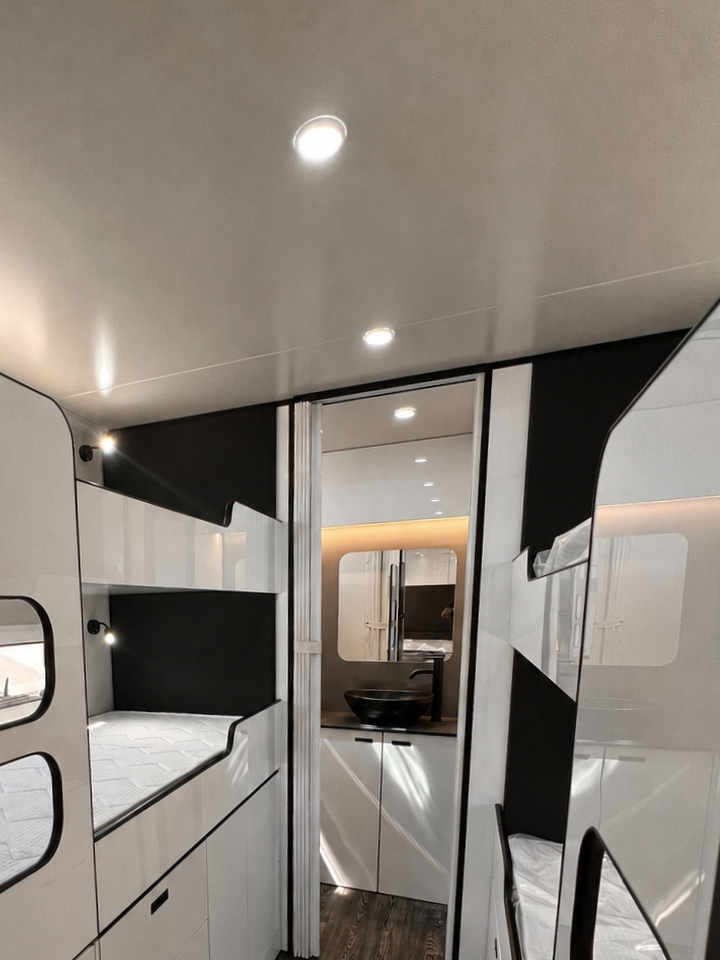

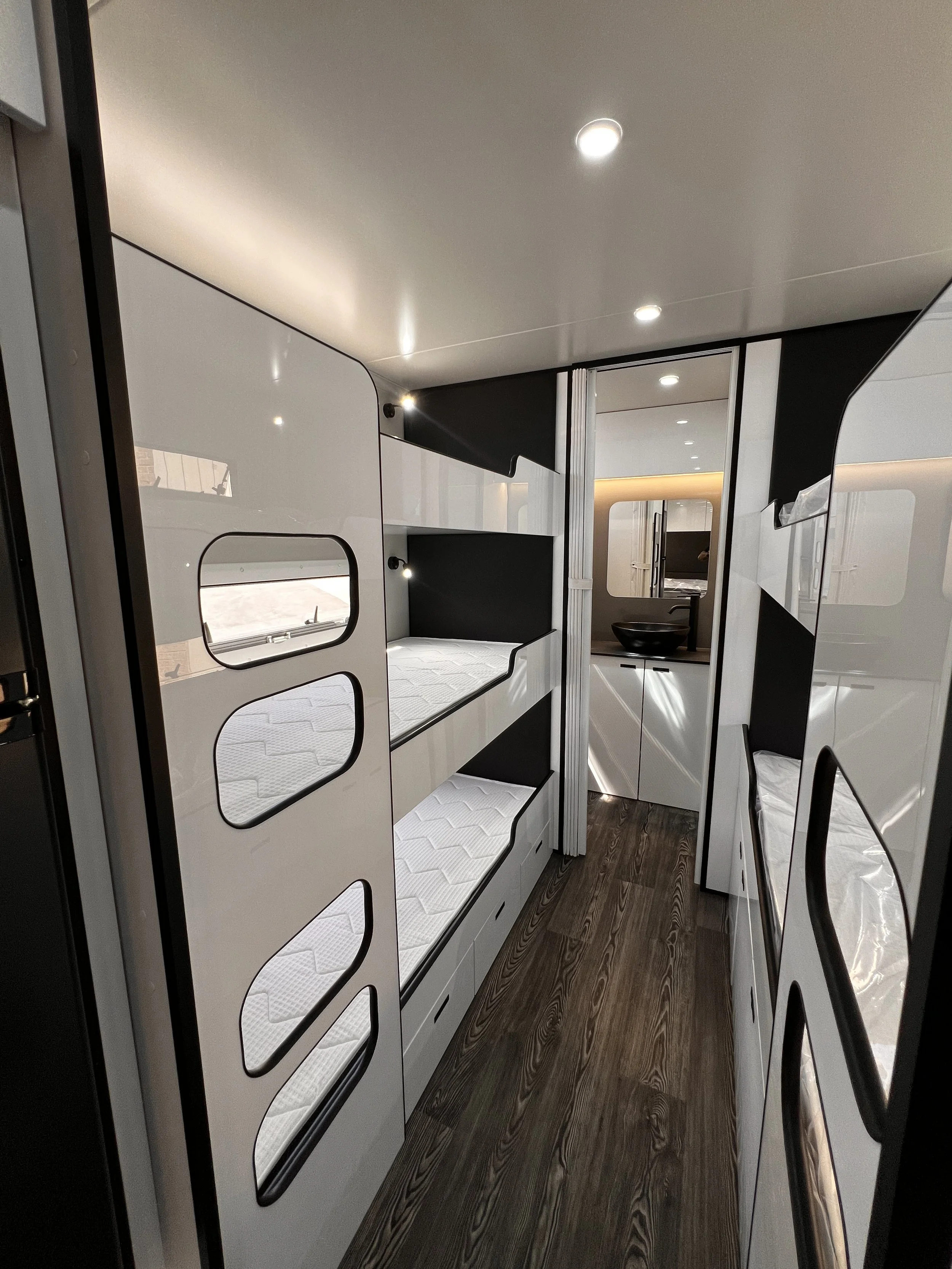

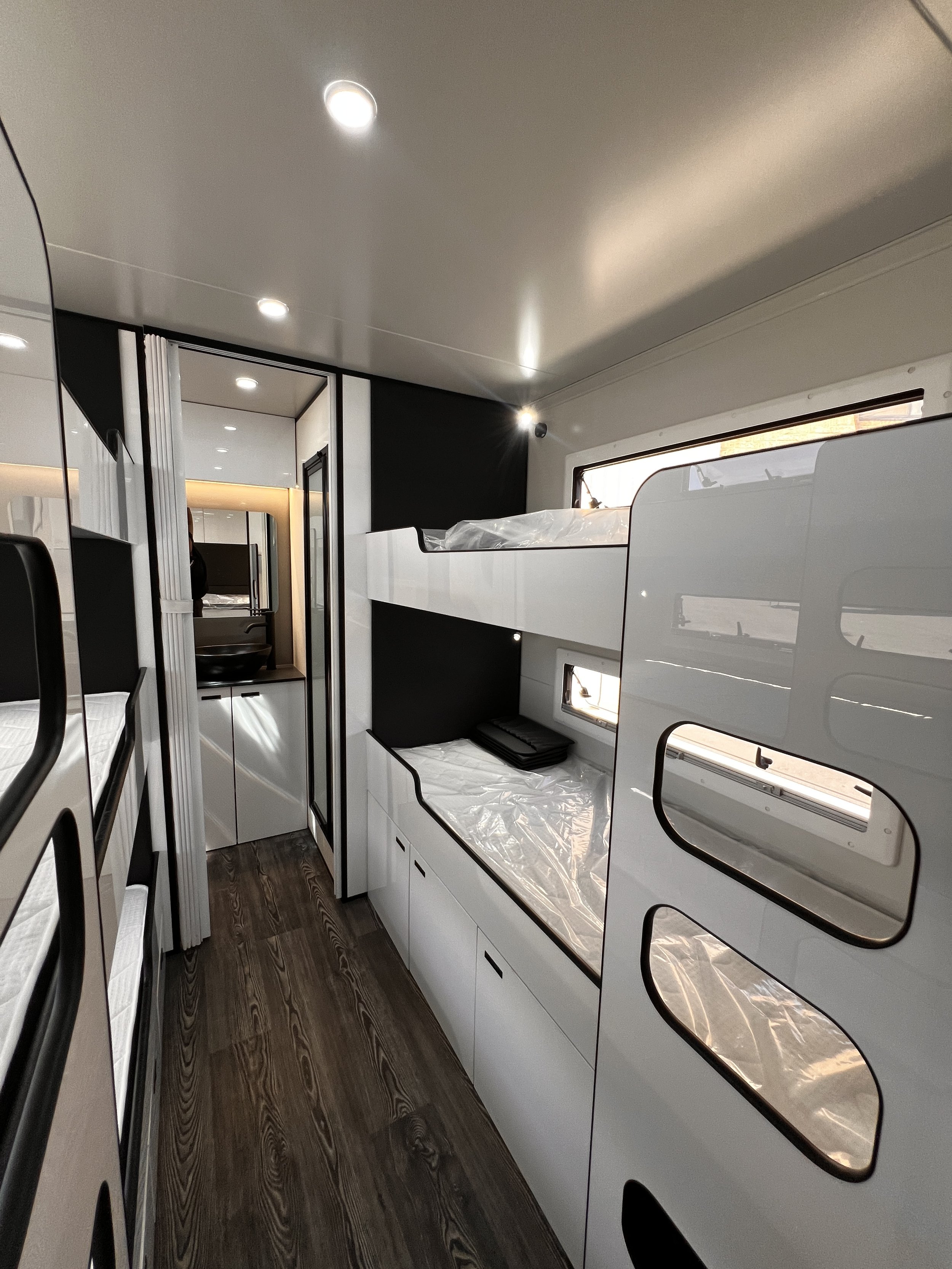

Life on the open road and remote regions can be long and tiring so when Elross set about design our family range it is important the van had separate zones for living spaces. This way everyone can enjoy their own luxurious experience in peace. Comfortable bedding utilising WA made mattresses, spacious ensuite combinations and even room for the laundry. The Elross family range has a model that will suit your needs.
HARD BODY EXTERIOR
Find the road less travelled with confidence. Elross’s Body building technique is unique in the market place, utilizing our own EPS panel core and Colourbond steel for our roof and wall construction. 50mm in thickness our panels provide superior strength and thermal properties for our harsh WA climate.
External moulds serve not only an aesthetic purpose but provide structural rigidity to our advanced body technology. Our body building’s primary function is to ensure the chassis, floor and walls all work together as a load bearing structure, not our furniture.
EQUIPPED WITH SOLAR
The Family range comes with many features to enable comfortable off grid living capability. Equipped with 400Watts of solar as standard feeding a 240 A/H LifePO4 lithium battery bank, power management is handled by the industries and Australia's best RED ARC.
ECXFR models upgrade this to a whopping 1000w of Solar and a huge 600A/H Lithium battery bank. Power is then distributed via RedArc’s TVMS1280 and also has an increased Charing capacity of 55amps utilizing an additional BCDC1225 for added charge input.
All Elross ECX Solar systems are upgradable to the same ECXFR offgrid plus package if needed.
The ECXF Features 240L of fresh and 95L of Grey water as standard, with upgradable HPDE Rotomolded tanks, you are sure to be ready to escape from the rat race. ECXFR models the standard inclusion of water holding increases to 320L of Fresh water capacity along with a UV sterilization system to ensure fresh plentiful water supply for you and your family.
LONG RANGE CAPABILITIES
*subjected to terms and conditions.
-
![Ladder package]()
LADDER PACKAGE
Optional ladder to access roof easily to clean panels or look at the stars! (std on ECXFR)
-
![]()
OUTDOOR KITCHENS
Add our own in house built Slide out kitchen with induction and optional Sizzler max bbq (std on ECXFR)
-
![Carafan]()
CARAFAN CP700
Made in WA the CP700 is built to match Elross’s tough vehicles providing dust mitigation. (std on ECXFR)
-
![Water tanks]()
320L WATER HOLDING*
Upgrade your Rota moulded water tanks for added capacity. *size depends on model
-
![Bug light]()
BUG LIGHT PACKAGE
Upgrade to a bug light package gvingyou 360’ of lighting around your van (std on ECXFR)
-
![toolbox]()
UPGRADE TO A DELUXE TOOLBOX
The Deluxe toolbox is fabricated in house and offers over 1427L of storage. 3 times the std toolbox capacity (std on ECXFR)
-
![water filtration]()

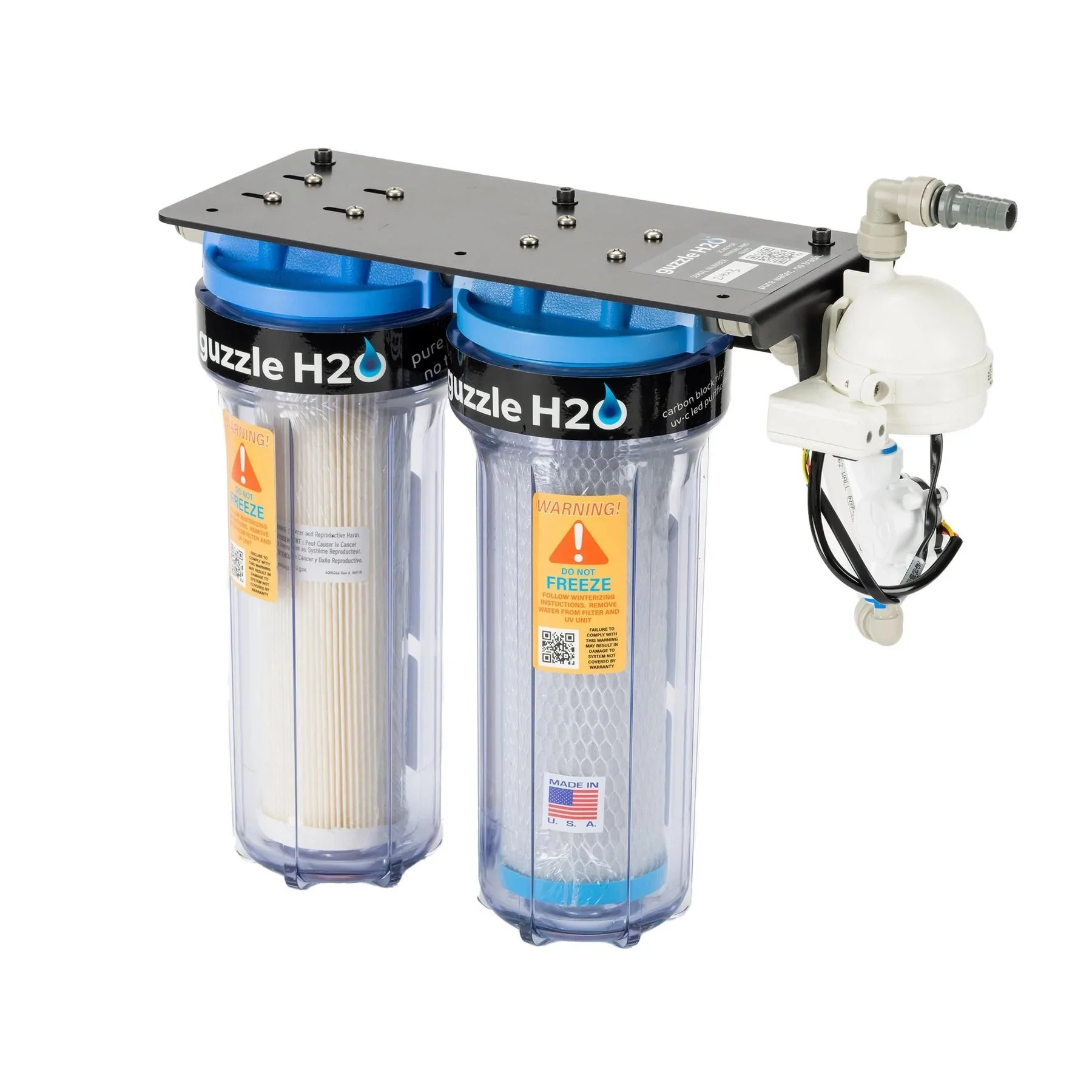

UV WATER FILTRATION & STERILIZATION
Option your ECXF van with self contained Water filtration and UV LED water sterilization for complete onboard treatment (std on ECXFR)
-
![Induction cooktop]()
INDUCTION COOKING
Upgrade your cooktop to induction! (std on ECXFR)
FLOORPLANS & SPECIFICATIONS
-
![]()
16.5FT
External Dimensions (mm) Length: 7425 Width: 2300 Height: 3150
Load and axle: 2.8T Coil / 2.6T Air | Approx min. Tare 2150kg | Ball weight: Approx 180kg
Please contact us for further layouts.
-
![]()
17FT
External Dimensions (mm) Length: 7575 Width: 2300 Height: 3150
Load and axle: 3.3T Coil / 3.4T Air | Approx min. Tare 2400kg | Ball weight: Approx 170kg
Please contact us for further layouts.
-
![]()
18.5FT
External Dimensions (mm) Length: 8075 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 3.4T Air | Approx min. Tare 2600kg | Ball weight: Approx 185kg
Please contact us for further layouts.
-
![]()
19FT
External Dimensions (mm) Length: 8225 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2660kg | Ball weight: Approx 190kg
Please contact us for further layouts.
-
![]()
20FT
External Dimensions (mm) Length: 8475 Width: 2300 Height: 3150
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2720kg | Ball weight: Approx 195kg
Please contact us for further layouts.
-
![]()
21FT
External Dimensions (mm) Length: 8825 Width: 2300 Height: 3200
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2800kg | Ball weight: Approx 200kg
Please contact us for further layouts.
-
![]()
22FT
External Dimensions (mm) Length: 9095 Width: 2300 Height: 3200
Load and axle: 3.7T Coil / 4.5T Air | Approx min. Tare 2870kg | Ball weight: Approx 205kg
Please contact us for further layouts.
| CHASSIS | AXLE | ECXF | ECXF-R |
|---|---|---|---|
| 16.5 | Single | $121 990.00 | $144 990.00 |
| 17 | Dual | $132 990.00 | $169 990.00 |
| 18.5 | Dual | $142 990.00 | $180 990.00 |
| 19 | Dual | $150 990.00 | $186 990.00 |
| 20 | Dual | $158 990.00 | $192 990.00 |
| 21 | Dual | $164 990.00 | $198 990.00 |
| 22 | Dual | $171 990.00 | $205 990.00 |
We make every effort to keep information as accurate as possible. Due to our continuous product development and improvement all information and items are subject to change without notice.
Get your copy of our ECXF & ECXFR FAMILY Brochure!
Download the FAMILY specification sheet
Proudly designed, manufactured and owned right here in Western Australia since 1984.
Elross Caravans continue to lead the industry, bringing high quality off-road products to the WA community.
EXPLORE OUR RANGE
-
![]()
ECX OFF-ROAD
The ECX Off-Road is a purpose crafted, Off road Recreational Vehicle constructed to withstand some of Australia's toughest terrain.
-

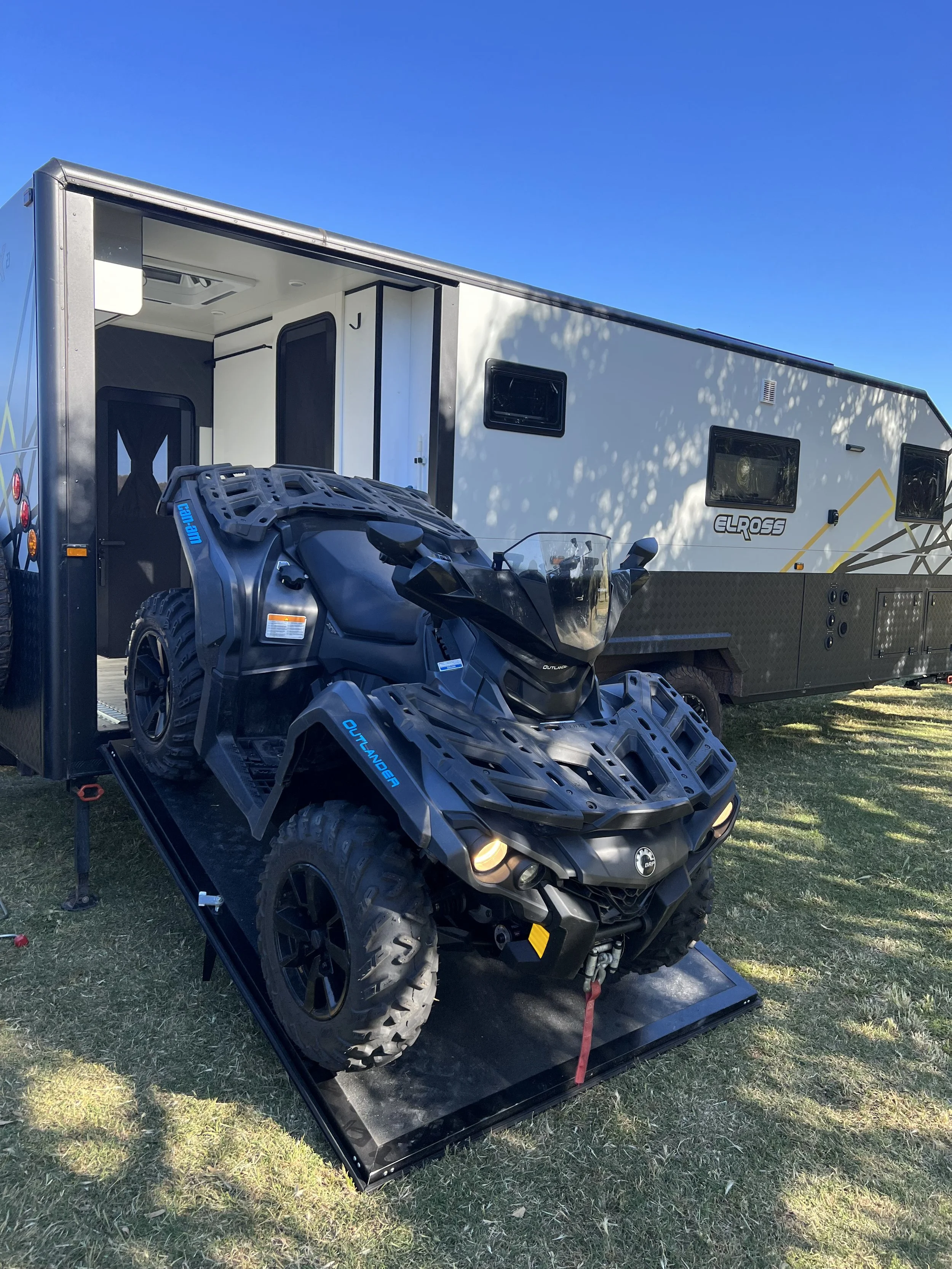

![ECX OCTANE - quad bike]()
